As a professional manufacturer with extensive experience in industrial metering, Legy provides comprehensive customization services for global energy distributors and system integrators. Our high-quality DTS1607 CT Operated DIN Rail Energy Meter is widely used in industrial plants, commercial complexes, and large-scale infrastructure projects. It is specifically designed to bridge the gap between high-voltage/high-current power distribution and precise digital metering.
Unlike direct-access meters limited to low currents, the DTS1607 operates natively with external Current Transformers (CTs), transforming high primary currents into safe, measurable secondary signals. This architecture ensures absolute electrical isolation and measurement accuracy for massive loads. Equipped with a high-contrast LCD display, it offers clear visibility into complex power parameters. For buyers looking to procure reliable industrial meters, our DTS1607 guarantees Class 0.5S precision and robust operational safety.
|
Specification |
||||
|
Accuracy |
Active |
Class1.0 |
||
|
Reactive |
optional |
|||
|
Voltage |
Rated |
3×57.7/100V,3×220/380V |
||
|
Range |
0.9Un~1.1Un |
|||
|
Limit |
0.8Un~1.2Un |
|||
|
Frequency |
50/60Hz |
|||
|
Current |
Range |
3×1.5(6),3×5(30),3×10(50),3×15(60),3×20(100),3×5(40),3×10(100)A |
||
|
Starting Current |
0.4%lb |
|||
|
Constant |
Active |
400 imp/kWh,800 imp/kWh,1600imp/kWh |
||
|
Reactive |
/ |
|||
|
Display |
Type |
LCD |
Register |
|
|
Digit |
5+1/6+1 |
|||
|
Power Consumption |
Voltage Circuit |
≤0.8W,10VA |
||
|
Current Circuit |
≤4VA |
|||
|
Communication |
Interface |
Optica/Infrared/RS485(Optional) |
||
|
Protocol |
MODBUS,DLT/645,IEC1107 |
|||
|
Temperature |
Working Temperature |
-45°C ~+55°C |
||
|
Storage Temperature |
-40°C ~+70°C |
|||
|
Humidity |
≤90% |
|||
|
Protection |
IP54 |
|||
The DTS1607 CT Operated DIN Rail Energy Meter is engineered to adapt to heavy-duty industrial environments, from manufacturing plants to large commercial facilities. Its compact DIN-rail form factor ensures effortless integration into existing three-phase distribution boards, saving valuable panel space. Recognizing that industrial loads demand uncompromising safety, we have designed this device with superior surge immunity and robust electrical isolation via the CT secondary circuit.
For system integrators and facility managers looking to procure industrial meters, the DTS1607 features advanced measurement capabilities to prevent data inaccuracies. In real-world deployments, energy operators have successfully used our DTS1607 CT Operated DIN Rail Energy Meter to implement automated load profiling and peak-demand monitoring. This initiative has proven effective in optimizing energy consumption, drastically reducing utility costs, and eliminating manual inspection risks. Whether for factory power monitoring or commercial sub-metering, this meter is an essential tool for modern industrial infrastructure.

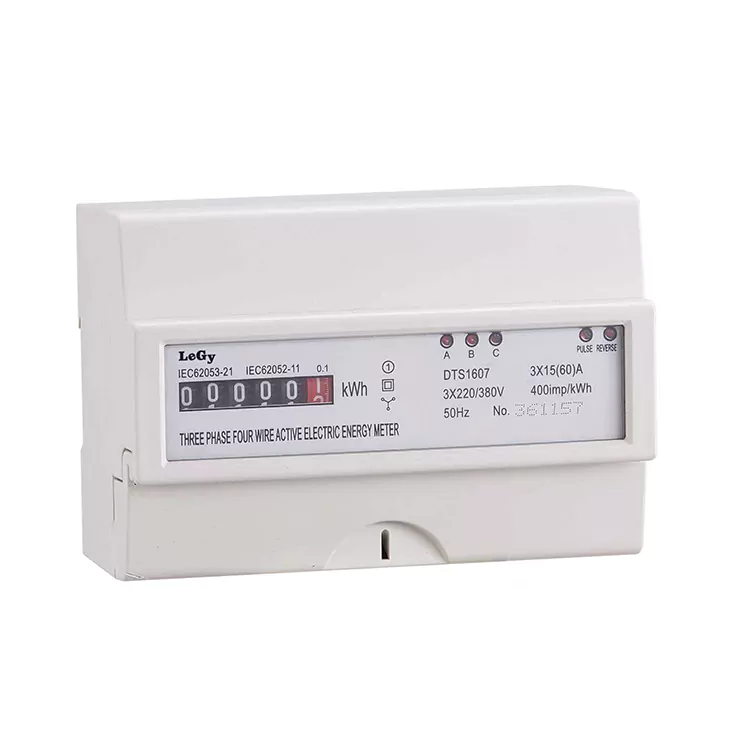

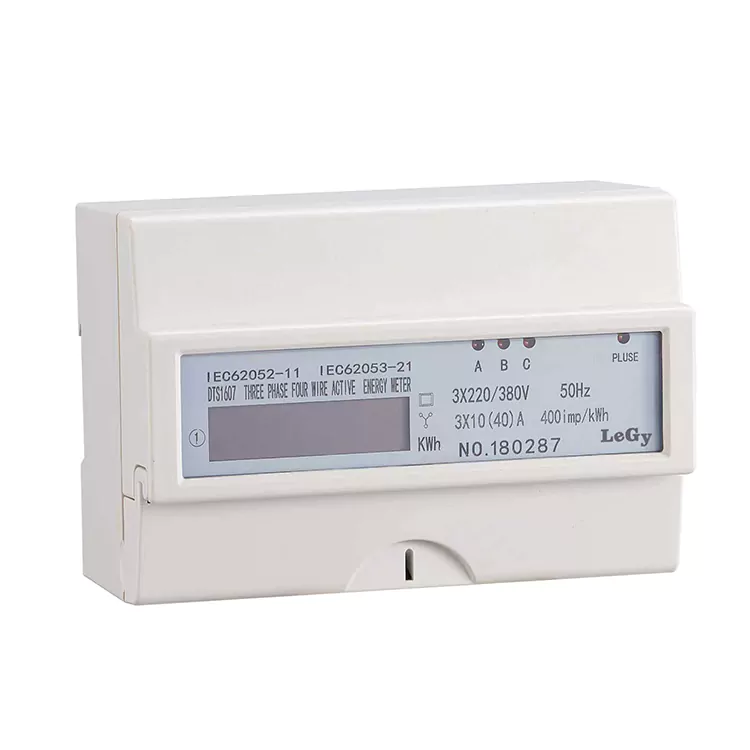

Model DTS1607 CT Operated DIN Rail Energy Meter is a kind of new style three phase four wire active energy meter. It adopts micro-electronics technique and imported large scale integrate circuit, use advanced technique of digital and SMT techniques, etc. The meter completely accords with relevant technical requirements of class 1 three phase active energy meter stipulated in international standard IEC62053-21. It can accurately and directly measure 50Hz or 60Hz active energy consumption from three phase four wire AC electricity net. It can display total energy consumption by step and motor type impulse register.
Phase loss with 3×LED display for L1, L2, L3
Pulse display with 2×LED display for pulse & reverse
Reverse direction display with LED
Small modular size, DIN rail mounted.
Easy installation to distribution boards, load center, miniature etc. by identifying where energy is being used.
As industrial automation and energy management evolve globally, facility operators require highly accurate, scalable power solutions. We are proud to introduce the DTS1607 CT Operated DIN Rail Energy Meter, a precision-engineered device specifically designed for high-current environments. Whether for factory sub-metering, commercial peak-demand management, or large-scale infrastructure auditing, this meter excels in bridging high-voltage distribution with digital EMS platforms. Built on a robust industrial architecture, the DTS1607 guarantees precise real-time logging without relying on complex proprietary software. We offer comprehensive wholesale and OEM customization services, empowering energy providers to deploy reliable, high-accuracy smart infrastructure that maximizes operational efficiency.
Effective industrial energy management relies on flawless data acquisition. The DTS1607 CT Operated DIN Rail Energy Meter is engineered to seamlessly handle complex EMS commands natively. It independently tracks and records active/reactive energy consumption across all three phases, utilizing external CTs to ensure absolute safety and accuracy even at massive loads. Equipped with a high-contrast LCD display, the meter provides on-site technicians with clear, real-time visibility into voltage, current, and power parameters. For utility operators and system integrators, this smart meter eliminates the need for manual meter reading, offering a highly cost-effective, zero-maintenance solution for accurate industrial billing and automated safety protection.
Modern industrial grids demand flexible and resilient metering solutions. The DTS1607 CT Operated DIN Rail Energy Meter is built to adapt to diverse high-current electrical environments, from heavy manufacturing plants to aging commercial buildings. Its compact DIN-rail form factor ensures effortless integration into existing three-phase distribution boards. Recognizing that industrial meters often handle massive and fluctuating loads, we have engineered this device with superior surge immunity and robust electrical isolation. Furthermore, the DTS1607 features advanced measurement mechanisms to prevent data loss or system downtime, ensuring that every recorded kilowatt-hour is managed accurately and securely.
For industrial operators and energy distributors, procurement must strictly adhere to regional electrical safety codes and metrology standards. The DTS1607 CT Operated DIN Rail Energy Meter is fully compliant with international metrology standards (IEC) and regional electrical safety codes. To streamline your strategic procurement, we provide comprehensive localized documentation, including multi-language installation guides, CT wiring diagrams, and user instructions. We also offer flexible OEM solutions, allowing you to customize the meter's physical appearance to perfectly align with your brand and local EMS ecosystems. Partnering with us ensures your industrial infrastructure is legally compliant and deployment-ready.
Rolling out industrial meters across a facility requires meticulous planning and precise network configuration. When you choose the DTS1607 CT Operated DIN Rail Energy Meter, you receive end-to-end project assurance. Our technical specialists work closely with your engineering teams to configure the exact CT ratios and safety thresholds required for your specific site. Should any issues arise during deployment, our dedicated support desk provides rapid troubleshooting and comprehensive integration guidance. We treat your industrial infrastructure as our own, ensuring a seamless transition to automated energy management without the need for complex network integrations.
Our reputation in the industrial metering sector is built on deep technical understanding.
Experience: We have successfully deployed thousands ofCT Operated DIN Rail Energy Meters, understanding the exact high-current and integration pain points of industrial operators and system integrators alike.
Expertise: Our engineers specialize in optimizing industrial metering architectures to ensure maximum electrical isolation and real-time data accuracy in harsh environments.
Authoritativeness: Leading industrial distributors choose the DTS1607 because of its flawless EMS integration and strict adherence to IEC safety standards.
Trustworthiness: We prioritize robust electrical design and physical durability, giving facility owners absolute confidence that their industrial infrastructure is protected against high-current hazards and data loss.
Our partnership with industrial operators extends well beyond installation. We provide a comprehensive after-sales ecosystem tailored for the industrial energy sector. If a facility reports a measurement anomaly, our technical support team can quickly verify the meter's specifications and guide on-site technicians through precise troubleshooting and EMS reconfiguration. We also maintain a robust inventory of replacement units and external CTs to guarantee rapid swaps, minimizing industrial downtime. Choose us for a reliable, long-term infrastructure partner that keeps your smart grid operations running flawlessly.
A: The DTS1607 CT Operated DIN Rail Energy Meter is designed to work with external CTs. We offer comprehensive OEM bundles that include matched high-precision CTs, or you can procure them separately to match your specific primary current requirements.
A: It is equipped with standard communication interfaces supporting widely used protocols. Our engineering team provides complete register maps and integration manuals to ensure seamless compatibility with your existing EMS or SCADA platforms.
A: Absolutely. The DTS1607 utilizes a completely isolated secondary CT circuit, ensuring that the low-voltage metering and communication systems are fully protected from high-voltage primary currents, meeting strict industrial safety standards.
The impact of our industrial metering technology is best seen in large-scale manufacturing projects. Recently, an automotive parts factory struggled with inaccurate direct-access meters and frequent system overloads. By deploying the DTS1607 CT Operated DIN Rail Energy Meter across their facility, they implemented automated load profiling. This initiative successfully eliminated manual inspection risks and optimized peak-demand charges, saving the factory thousands of dollars annually. In another project, a commercial property manager used our meters to integrate sub-metering data directly into their central EMS, fostering a transparent and energy-efficient facility culture. These deployments prove that our meters are essential tools for modern industrial infrastructure.
Every product undergoes strict quality inspection and performance verification before delivery. Our electrical measuring instruments are tested by the China Quality Supervision and Inspection Center for Electrical Measuring Instruments, an authorized professional testing organization, with official Test Reports and Reliability Prediction Reports issued for product validation.
The testing covers key parameters such as measurement accuracy, electrical performance, operational stability, and product reliability. Supported by recognized certifications including CNAS laboratory accreditation and national inspection qualifications, our products are designed to provide accurate measurement, safe operation, and consistent performance in various application environments.
Through certified testing procedures and rigorous quality management, we ensure every product meets international customers' expectations for reliability and durability.
