Built for demanding automated infrastructures, the DTS1607L RS485 Three Phase DIN Rail Smart Energy Meter serves as a reliable data node in both commercial smart buildings and industrial control panels. Its space-saving DIN-rail footprint allows for rapid installation directly within standard distribution boards, sitting perfectly alongside miniature circuit breakers. Because automated systems cannot tolerate data corruption, this device incorporates heavy-duty anti-interference shielding. This ensures that RS485 communication remains rock-solid, even when installed inside electrically noisy industrial panels.
System integrators and facility managers rely on the DTS1607L to completely remove human error from the equation through automated remote polling. In practical field applications, energy operators leverage this meter to track peak-demand spikes and manage tenant sub-metering. The result is a streamlined approach to energy management that slashes utility bills and guarantees transparent, auditable billing. Whether you are managing a commercial property or profiling industrial loads, this meter acts as a foundational element for modern smart infrastructure.
|
Voltage AC(Un) |
3*230/400 |
|
Voltage range |
3*161/279 to 300/500 |
|
Base(lb) |
5A |
|
Max(lmax) |
80A |
|
Starting current (mA) |
0.4% of Ib |
|
Power consumption of current |
≤2W / 10VA pre phase |
|
Frequency(Hz) |
50(±10%) |
|
Pulse constant |
1.0 |
|
Standards |
IEC 62052-11,IEC 62053-21 |
|
Memory back-up |
EEPROM |
|
Upper |
Polycarbonate |
|
Lower |
Polycarbonate / glass fiber |
|
Operating |
-25°C to +55°C |
|
Storing |
-30°C to +70°C |
|
Operating |
75% |
|
Storing |
95% |
|
Protection against penetration of dust and water |
IP51 |
|
Insulating encased meter of protective class |
II |
|
AC voltage withstand |
2kV for 1 minute |
|
Impulse voltage withstand |
6kV-1.2uS waveform |
|
Current withstand |
30Imax for 0.01s |
|
Pulse output rate |
400imp/kWh |
|
Data stored |
More than 20 years when power off |
Designed for seamless integration into complex automated systems, the DTS1607L RS485 Three Phase DIN Rail Smart Energy Meter is ideal for both smart commercial buildings and industrial control panels. Its compact DIN-rail design allows for easy installation within existing distribution boards, right next to miniature circuit breakers. Understanding that automated systems depend on flawless data integrity, this meter is equipped with advanced anti-interference shielding to guarantee stable RS485 communication, even in highly electrically noisy environments.
For facility managers and system integrators seeking reliable smart metering, the DTS1607L offers advanced remote data polling to completely eliminate manual reading errors. In practical applications, energy operators have successfully deployed this meter to automate peak-demand monitoring and manage tenant sub-metering. These implementations have proven highly effective in optimizing energy usage, significantly lowering utility expenses, and delivering transparent billing information. Whether applied to commercial property management or industrial load profiling, this meter is a vital component of modern smart infrastructure.

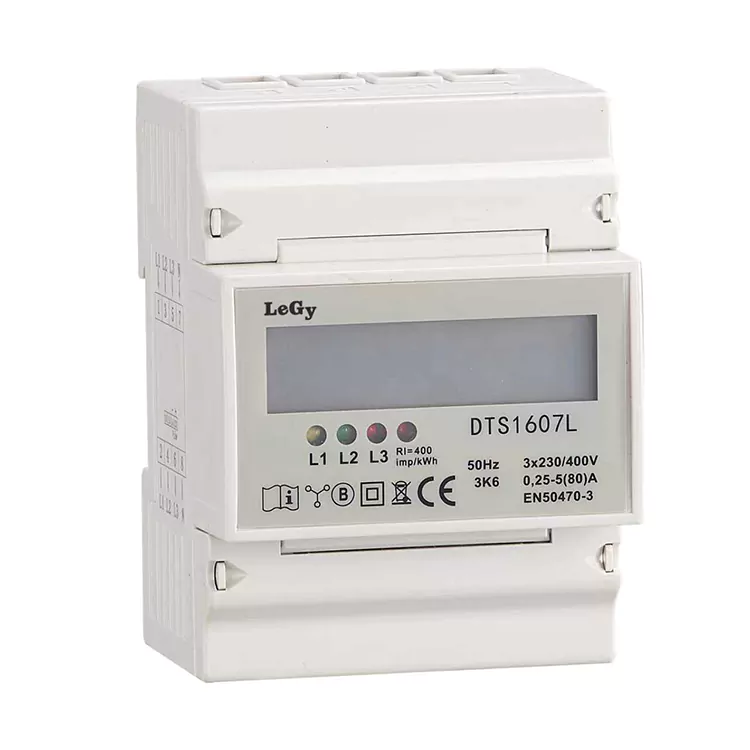

Model DTS1607L RS485 Three Phase DIN Rail Smart Energy Meter is a kind of new style three phase four wire active energy meter. It adopts micro-electronics technique and imported large scale integrate circuit, use advanced technique of digital and SMT techniques, etc. The meter completely accords with relevant technical requirements of class 1 three phase active energy meter stipulated in international standard IEC62053-21. It can accurately and directly measure 50Hz or 60Hz active energy consumption from three phase four wire AC electricity net. It can display total energy consumption by step and motor type impulse register.
Phase loss with 3×LED display for L1, L2, L3
Pulse display with 2×LED display for pulse & reverse
Reverse direction display with LED

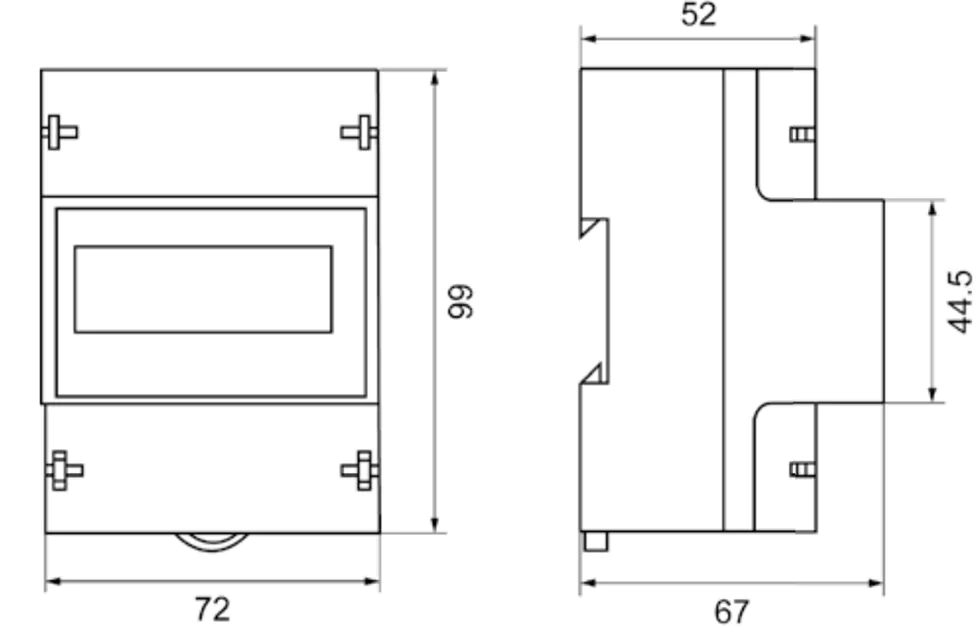

Small modular size, DIN rail mounted
Easy installation to distribution boards, load center, miniature etc. by identifying where energy is being used
As digital transformation sweeps the energy sector, operators need power monitoring tools that are both highly accurate and network-ready. Enter the DTS1607L RS485 Three Phase DIN Rail Smart Energy Meter, a precision-crafted device built specifically for automated data acquisition. Whether the goal is commercial tenant billing, industrial load profiling, or large-scale infrastructure auditing, this meter effectively bridges physical power consumption with digital BMS platforms. Built on a solid industrial foundation, the DTS1607L ensures precise real-time logging via standard Modbus protocols, bypassing the need for complicated proprietary software. We also provide extensive wholesale and OEM customization services, enabling energy providers to deploy dependable, high-accuracy smart infrastructure that maximizes operational efficiency.
Effective smart energy management hinges on flawless data transmission. The DTS1607L RS485 Three Phase DIN Rail Smart Energy Meter is specifically designed to natively process complex EMS commands. It independently monitors and logs active and reactive energy consumption across all three phases, utilizing its RS485 interface to instantly transmit real-time parameters to central controllers. Featuring a high-contrast LCD display, the meter offers on-site technicians clear, immediate visibility into voltage, current, and power metrics. For system integrators and utility operators, this smart meter removes the necessity for manual readings, providing a highly cost-effective, zero-maintenance solution for accurate industrial billing and automated safety protection.
Modern smart grids require flexible and resilient metering solutions. The DTS1607L RS485 Three Phase DIN Rail Smart Energy Meter is engineered to adapt to a wide range of automated electrical environments, from contemporary commercial complexes to older industrial facilities. Its compact DIN-rail form factor guarantees effortless integration into existing three-phase distribution boards. Recognizing that smart meters frequently manage massive and fluctuating loads, we have equipped this device with superior surge immunity and robust electrical isolation. Additionally, the DTS1607L utilizes advanced RS485 communication mechanisms to prevent data loss or system downtime, ensuring that every recorded kilowatt-hour is managed accurately and securely.
For energy distributors and commercial operators, procurement must strictly comply with regional electrical safety codes and metrology standards. The DTS1607L RS485 Three Phase DIN Rail Smart Energy Meter fully adheres to international metrology standards (IEC) and regional electrical safety regulations. To simplify your strategic procurement, we supply comprehensive localized documentation, including multi-language installation guides, RS485 wiring diagrams, and Modbus register maps. We also provide flexible OEM solutions, allowing you to customize the meter's physical appearance and communication protocols to perfectly match your brand and local EMS ecosystems. Partnering with us ensures your smart infrastructure is legally compliant and ready for deployment.
Deploying smart meters across a facility demands meticulous planning and precise network configuration. When you select the DTS1607L, you gain end-to-end project assurance. Our technical specialists collaborate closely with your engineering teams to configure the exact RS485 parameters, Modbus addresses, and safety thresholds required for your specific site. Should any issues emerge during deployment, our dedicated support desk offers rapid troubleshooting and comprehensive EMS integration guidance. We treat your smart infrastructure as our own, ensuring a smooth transition to automated energy management without the need for complex network integrations.
Our partnership with commercial operators extends far beyond the initial installation. We provide a comprehensive after-sales ecosystem specifically tailored for the smart energy sector. If a facility experiences a communication anomaly, our technical support team can quickly verify the meter's specifications and guide on-site technicians through precise RS485 troubleshooting and EMS reconfiguration. We also maintain a robust inventory of replacement units to guarantee rapid swaps, minimizing smart grid disruptions. Choose us for a reliable, long-term infrastructure partner that keeps your smart operations running flawlessly.
Generic residential meters often lack the specialized architecture required for automated energy management. Here is how the DTS1607L RS485 Three Phase DIN Rail Smart Energy Meter decisively outperforms them:
Native RS485 Integration vs. Standalone Operation: While standard meters require manual data extraction, our DTS1607L features native Modbus RTU communication, seamlessly syncing with SCADA and EMS platforms.
Automated Load Profiling vs. Delayed Readings: Standard meters rely on manual monthly readings. Our meter pushes real-time energy usage and safety alerts directly to central controllers, ensuring instant awareness and control.
Industrial-Grade Anti-Interference vs. Basic Design: Generic meters often suffer from data loss in noisy environments. Our DTS1607L is engineered with robust shielding, guaranteeing flawless data transmission in complex electrical panels.
Our reputation in the smart metering sector is built on deep technical understanding.
Experience: We have successfully deployed thousands of RS485 smart meters, understanding the exact networking and integration pain points of system integrators and facility managers alike.
Expertise: Our engineers specialize in optimizing smart grid architectures to ensure maximum communication stability and real-time data accuracy in complex environments.
Authoritativeness: Leading commercial distributors choose the DTS1607L because of its flawless Modbus integration and strict adherence to IEC safety standards.
Trustworthiness: We prioritize robust electrical design and physical durability, giving facility owners absolute confidence that their smart infrastructure is protected against electrical hazards and data loss.
A: The DTS1607L natively supports industry-standard Modbus RTU and DL/T645 protocols via its RS485 interface. We provide complete register maps and integration manuals to ensure seamless compatibility with your existing BMS or SCADA platforms.
A: Absolutely. The meter features a standard RS485 interface with configurable slave addresses, allowing you to daisy-chain multiple meters on a single bus for efficient centralized data polling.
A: Yes. The DTS1607L is engineered with robust electrical isolation and anti-interference shielding, ensuring stable communication and accurate metering even in electrically noisy industrial panels.
The impact of our automated metering technology is best seen in modern commercial and industrial projects. Recently, a large shopping mall struggled with manual meter reading and inaccurate tenant billing. By deploying the DTS1607L RS485 Three Phase DIN Rail Smart Energy Meter across their facility, they implemented automated peak-demand monitoring and centralized billing. This initiative successfully eliminated manual inspection costs and optimized peak-demand charges, saving the property thousands of dollars annually. In another project, a data center used our meters to integrate sub-metering data directly into their central EMS, fostering a transparent and energy-efficient facility culture. These deployments prove that our meters are essential tools for modern smart infrastructure.
Every product undergoes strict quality inspection and performance verification before delivery. Our electrical measuring instruments are tested by the China Quality Supervision and Inspection Center for Electrical Measuring Instruments, an authorized professional testing organization, with official Test Reports and Reliability Prediction Reports issued for product validation.
The testing covers key parameters such as measurement accuracy, electrical performance, operational stability, and product reliability. Supported by recognized certifications including CNAS laboratory accreditation and national inspection qualifications, our products are designed to provide accurate measurement, safe operation, and consistent performance in various application environments.
Through certified testing procedures and rigorous quality management, we ensure every product meets international customers' expectations for reliability and durability.
